C114 T-MIXER

C114 T-MIXER

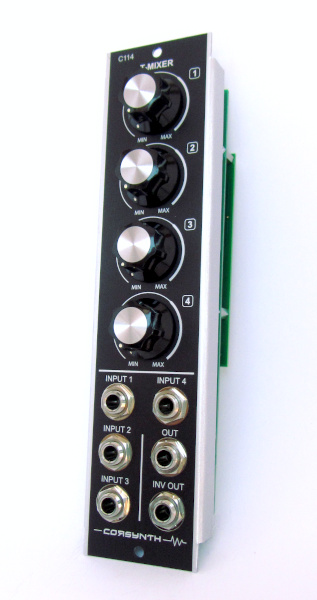

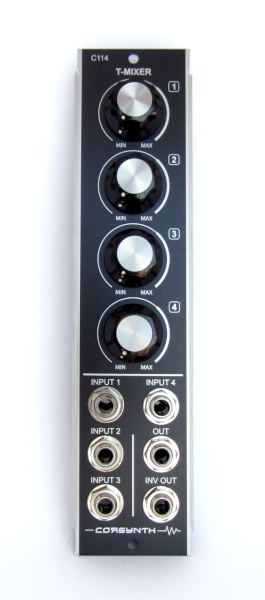

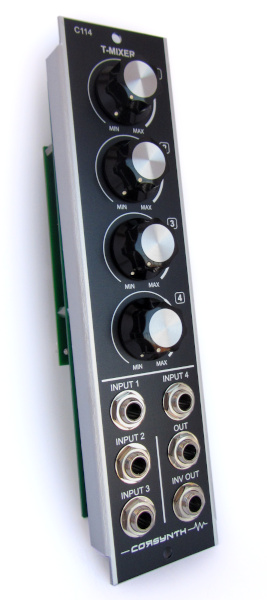

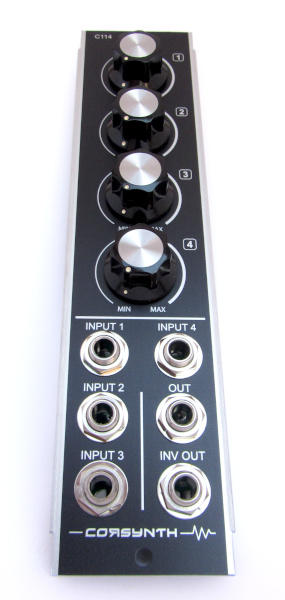

The C114 T-Mixer is a four channel transistor based mixer. The design is based on the classic Moog CP3 mixer but adapted to modern modular signal levels. The CP3 mixer was a key factor in the classic Moog modular sound.



The C114 can be used as a clean mixer but when it shines is when is pushed out of its “comfort zone”. The C114 will start to add harmonics to the input signal and the distortion can go from a subtle effect to a hard clipping distortion.

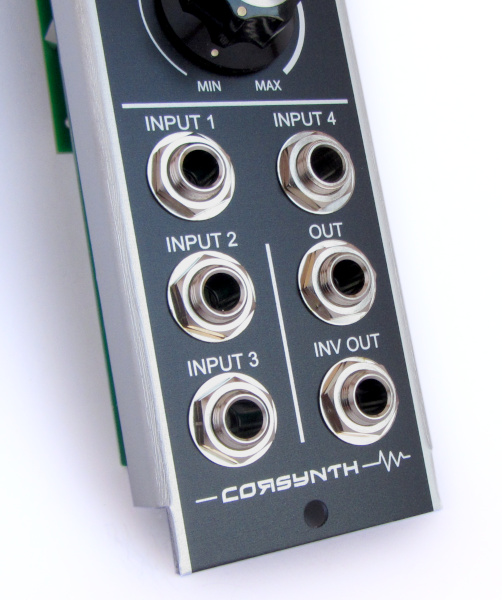

The mixer has two outputs , one normal and the other one inverted and each output has different distortion characteristics.



The C114 can be used with audio and CV signals.



C114 T-Mixer main characteristics :

            • Transistor based mixer

            • Four inputs

            • Two outputs (one inverted)



Tags : MU Format , MU Modular , 5U Format , 5U Modular , Moog Format , Modular Synth , Synthesizers.com , Dotcom Modular , Synthesizer , Modular Synthesizer



225€ + VAT

C114 T-MIXER

sounds

images

technical data

  • Module Format : 5U, MU format ( Synthesizers.com, Moog )
  • Module Width :  1 MU ( Moog Unit )
  • Module Depth : 52 mm ( 2,05 inches )
  • Power :  +15V@35mA, -15V@34mA
  • Power connectors : Synthesizers.com , MOTM ( 4 pin )
  • Signal Levels : 10 Vpp ( -5V to +5V )
